1407 D MOLI +

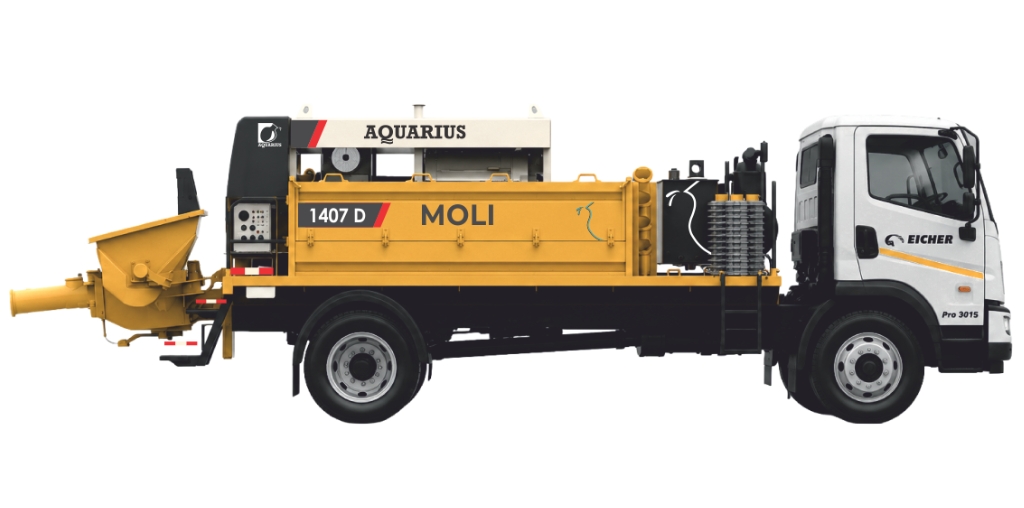

MOBILE LINE PUMP – 1407 D MOLI +

Features

  • New Futuristic look with Latest Design
  • Remote Control Operation
  • Sturdy and rigid trailer frame with 4 nos. outriggers to achieve completely stable pumping
  • Highly reliable equipment with longer maintenance intervals
  • Uninterrupted operation possible with mechanical override on electrical system
  • Lower number of strokes in its class resulting low wear part cost

Technical Specification

Parameters Unit 1407 D MOLI +
Prime Mover kW 82
Theoretical Output m3/hr 65 / 45*
Del. Cylinder Diameter mm 200
Del. Cylinder Stroke mm 1400
No. of Strokes per min 25 / 17*
Hydraulic Transmission Road Side

Head Side

1:4.9

1:3.3

Concrete Pressure bar 71 / 106*
Concrete Hopper Capacity L 600
Delivery Distance** Horiz
Vert
m
m
600
150
GVW kg 11000+
Wheel Base Mm 4200+
Chassis Frame Width Mm 860+

*Values for hydraulic fluid being fed to piston side.

**Distances to be read as either horizontal or vertical. The concrete should be pumpable & follows

DIN 1045 standard.
